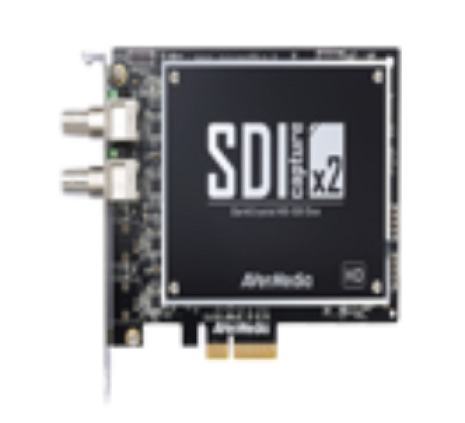

DarkCrystal HD-SDI Duo (CD910) |
|
| The DarkCrystal HD-SDI Duo features 2-channel HD/SD SDI for high-end demands from more professional applications. BNC connectors secure stable and high frequency signals during transmission and the capture quality. Compatibility with Microsoft DirectShow and various 3rd-party provides the greater convenience of working with a broad range of professional video editing software. |
| Capture and Convert Full HD Video Contents |
| The DarkCrystal HD-SDI Duo captures and converts 2 HD-SDI or 2 ASI video sources simultaneously. The DarkCrystal HD-SDI Duo fulfills the need of preserving and converting HD video content via SDI/ ASI. |
| Real-time HD Video Encoding |
| The DarkCrystal HD-SDI Duo allows you to develop and design application on platforms you are familiar with. It is multi-task capable while taking the space of one PCI-E slot. This powerful and space-saving capture card is exactly what you need to accomplish professional tasks. |
| Video Input | SDI/HD-SDI/SD-SDI/ASI (BNC) |
| Audio Input | Embedded SDI Audio (8-ch Embedded Audio per SDI input) |
| Video Resolution | (HD-SDI) (SD-SDI) |
| Pixel Format | YUY2(4:2:2); V210(4:2:2) |
| SDI Color Precision | 10/8-bit |
| Audio Sampling | 48KHz at 24-bit |
| SDI Compliance | SMPTE 292M (HD-SDI) SMPTE 259M (SD-SDI) |
| PC Interface | PCIe Gen 1 x4 |
| Operating Environment | Temperature: 10 to 55°C Humidity: 10 to 90% RHNC |
| Storage Environment | Temperature: -30 to 65°C Humidity: 10 to 90% RHNC |
| Dimensions (mm) | 137.8(L)*110(W)*1.57(H) |
| SDI Cable Length(1694A) | HD: 200M, SD: 300m (Typical) |
